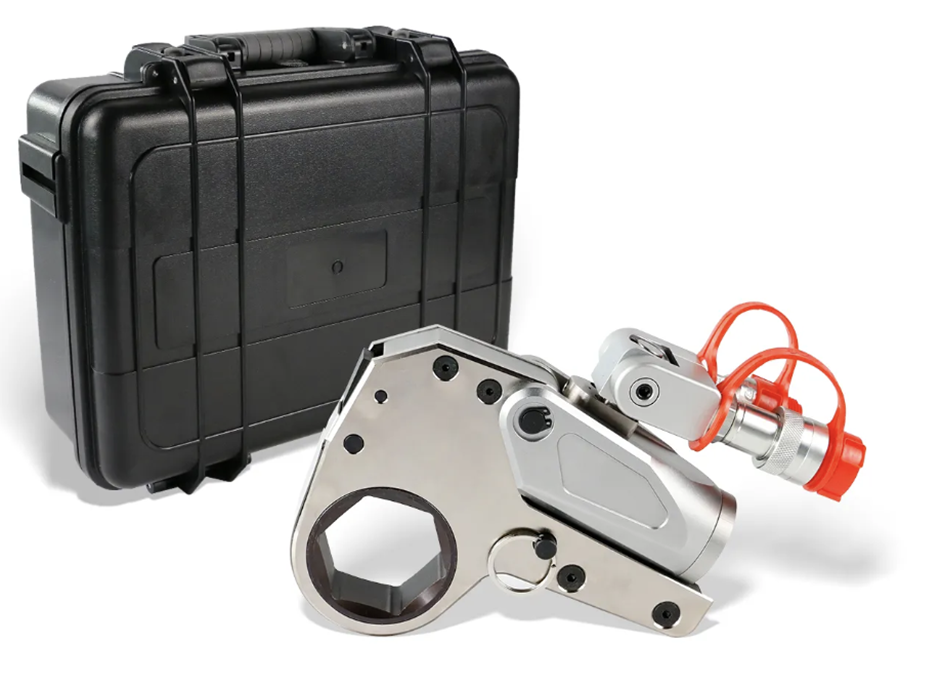

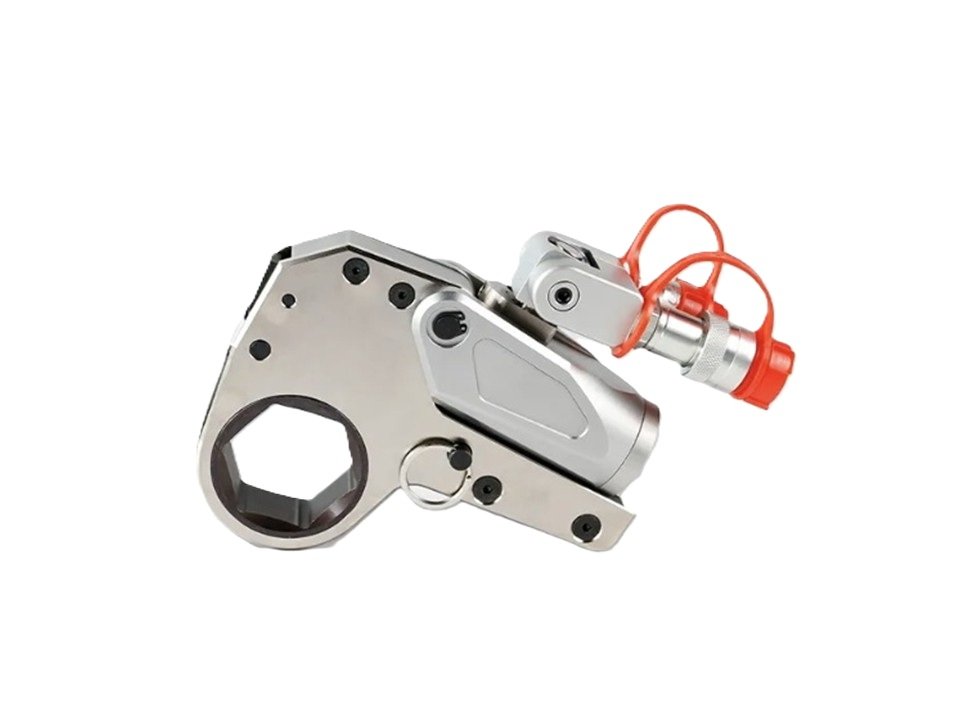

Hydraulic Torque Wrenches – Low Profile

Low Profile Hydraulic Torque Wrenches are engineered to deliver exceptional precision and controlled torque while offering superior accessibility in confined or hard-to-reach spaces. Their compact design allows efficient operation around tight clearances, ensuring reliable performance and enhanced productivity in critical bolting applications.

Maximum working pressure up to 70 MPa with exceptional accuracy of ±3%.

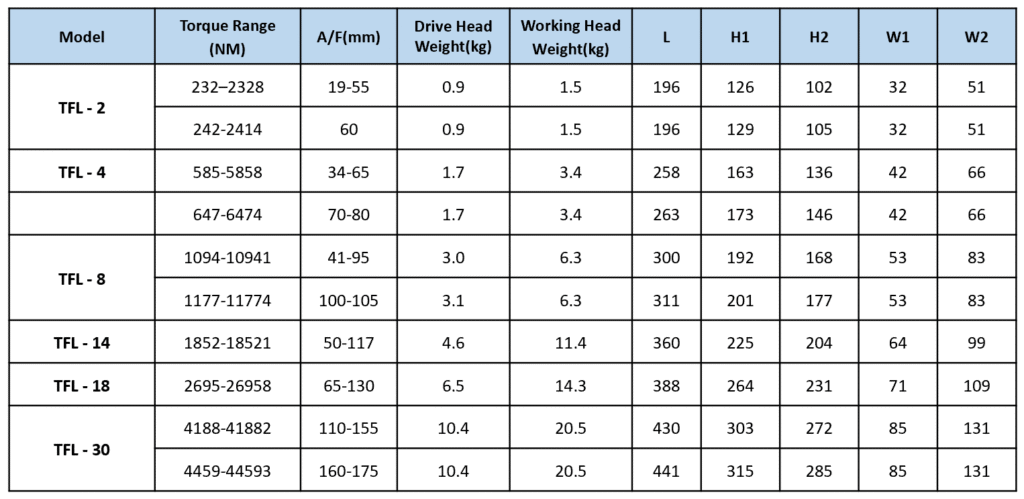

Wide range of six models available, covering torque outputs from 232 Nm to 44,593 Nm.

Flexible rotation options (360°×180° or 360°×360° hose connectors), designed for unrestricted use in tight or complex spaces.

Extended integrated design for a longer lever arm, enhancing strength, reliability, and durability.

Premium aluminum-titanium alloy construction ensures high strength, lightweight performance, and superior toughness.

Advanced anti-loosening joints guarantee smooth, uninterrupted oil flow.

Anti-reverse pawl mechanism prevents ratchet rollback, delivering greater efficiency and torque precision.

Lightweight hollow design applies torque directly to the nut, ensuring higher accuracy and easier handling.
